ITS Releases Broad Reference to Support Dynamic Spectrum Coexistence

Accurately predicting and modeling the impacts of terrain, vegetation, and buildings on radio wave propagation to understand how to reach a receiver that is beyond line of sight is a significant challenge. It becomes ever more important to get right as more wireless systems are crammed into narrower slices of radio frequency spectrum. NTIA TR-25-580 brings the community of practice one step closer toward overcoming that challenge.

NTIA TR-25-580 “A Comparative Analysis of Multiple Knife-Edge Diffraction Methods” compares various methods of computing radio wave diffraction and describes proposed metrics for determining the most suitable diffraction model for various circumstances.

Until now, there has been no single authoritative reference detailing the advantages, disadvantages, and computational complexity of different knife-edge diffraction methods for problems of practical interest for real-world radio propagation.

Single knife-edge diffraction is a ubiquitous and relatively robust technique widely utilized by radio propagation models that attempt to predict a radio wave’s interactions with the physical world for example, irregular terrain obstructions.

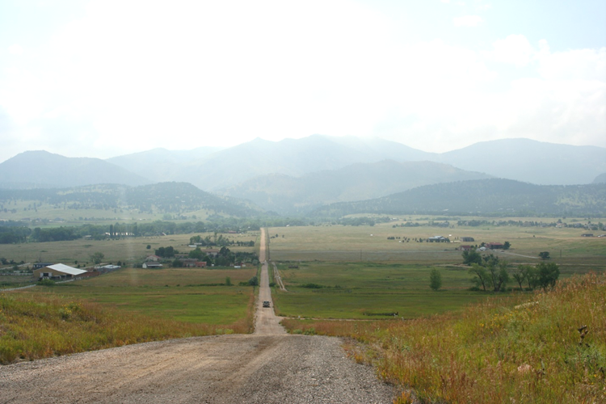

Table Mountain Field Site Plateau Road diffraction path

The Table Mountain Field Site Plateau Road diffraction path (north of Boulder, Colorado, looking west. The peaks of the Continental Divide in the Northern Rockies are in the distance. Credit: ITS.

The NTIA-ITS scientist Lewis E. Vogler [see NTIA TR 81-86 and NTIA TR 83-124] obtained formal solutions to the (scalar) multiple knife-edge diffraction problem. In NTIA TR 83-124 he also describes a numerical method to evaluate the multiple integrals that are contained in the formal solution. However, this method has not been widely adopted in radio propagation models due to its analytic complexity and computational burden but was not widely adopted in radio propagation models due to analytic complexity and the computational burden of solving these integrals.

Instead, largely heuristic single knife-edge methods for approximating some multiple knife-edge problems were proposed to overcome the challenges associated with obtaining rigorous results. However, in geometrically complex environments like today’s urban canyons, a multiple knife-edge diffraction method is needed to more accurately predict a radio wave’s behavior.

The new NTIA report provides comparisons of these approximate methods to the rigorous solutions of Vogler. The result is a method that can be used to accurately predict and model the impacts of terrain, vegetation, and buildings on radio-wave propagation to understand how to reach a receiver that is beyond line of sight, such as a telecommunication system in an urban environment.
